Product Information
Application range

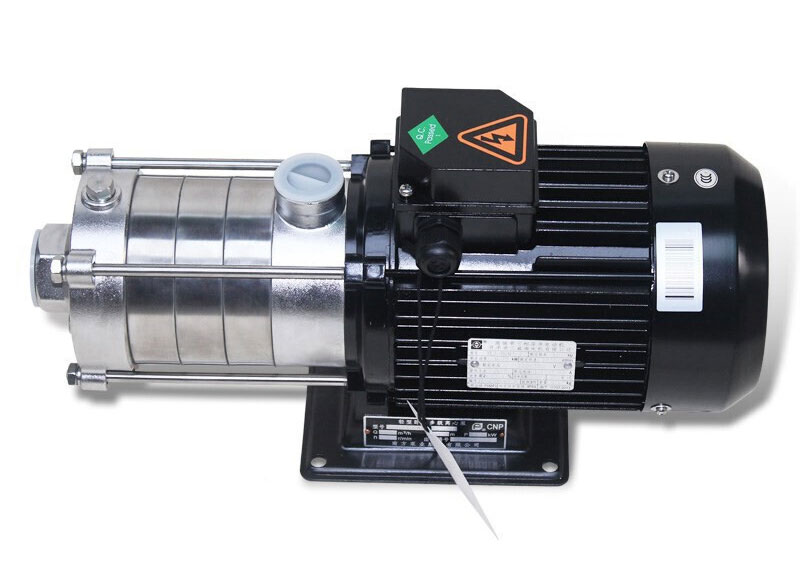

CHL, CHLK and CHLF (T) pumps are mainly used for household central air conditioning cycle and industrial liquid transfer. Such as demineralized water, soft water, purification systems, light oil and other cycles and pressurization.
· small central air conditioning cycle
·cooling system
·Industrial Cleaning
· water treatment (water purification)
·Aquaculture
· Fertilization / Metering System
·Environmental Application
Working conditions
A liquid that is thin, clean, non-condensing, non-explosive, and free of solid particles or fibers.
Liquid temperature: normal temperature type -15 ° C to +70 ° C
Hot water type +70°C to +110°C
Maximum ambient temperature: +40 ° C
Maximum operating pressure: 10 bar
Maximum inlet pressure is limited by maximum operating pressure
Medium acidity and alkalinity: PH4~9
Motor
The motor is a fully enclosed, air-cooled two-pole motor
Protection level: IP55
Insulation class: F
Standard voltage,
50Hz:
1×220-240V
3×220-240V
380-415V
60Hz:
1×220-240V
3×220-240V
380-415V
| Model | ????????????Head (m) | ????????????Traffic (m3/h) | ????????????Motor Power (KW) | ????????????Speed ??(r/min) | ????????
| CHL2-20 | ????????????14 | ????????????2 | ????????????0.37 | ????????????2900 | ????????
| CHL2-30 | ????????????21 | ????????????2 | ????????????0.55 | ????????????2900 | ????????
| CHL2-40 | 28 | 2 | 0.55 | 2900 |
| CHL2-50 | 35 | 2 | 0.55 | 2900 |
| CHL2-60 | 42 | 2 | 0.75 | 2900 |
| CHL4-20 | 15 | 4 | 0.55 | 2900 |
| CHL4-30 | 22 | 4 | 0.75 | 2900 |
| CHL4-40 | 30 | 4 | 0.75 | 2900 |
| CHL8-10 | 8.5 | 8 | 0.75 | 2900 |
| CHL8-20 | 17 | 8 | 0.75 | 2900 |
| CHL8-30 | 25.5 | 8 | 1.1 | 2900 |
| CHL8-40 | 34 | 8 | 1.5 | 2900 |
| CHL8-50 | 42.5 | 8 | 2.2 | 2900 |
| CHL12-10 | 9.5 | 12 | 0.75 | 2900 |
| CHL12-20 | 19.5 | 12 | 1.2 | 2900 |
| CHL12-30 | 29.5 | 12 | 1.8 | 2900 |
| CHL12-40 | 39.5 | 12 | 2.4 | 2900 |
| CHL12-50 | 50 | 12 | 3 | 2900 |
| CHL16-10 | 10 | 16 | 1.1 | 2900 |
| CHL16-20 | 21 | 16 | 2.2 | 2900 |
| CHL16-30 | 32 | 16 | 3 | 2900 |
| CHL20-10 | 9.5 | 20 | 1.1 | 2900 |
| CHL20-20 | 21 | 20 | 2.2 | 2900 |
| CHL20-30 | 33 | 20 | 4 | 2900 |
| CHLF(T)2-20 | 14 | 2 | 0.37 | 2900 |
| CHLF(T)2-30 | 21 | 2 | 0.55 | 2900 |
| CHLF(T)2-40 | 28 | 2 | 0.55 | 2900 |
| CHLF(T)2-50 | 35 | 2 | 0.55 | 2900 |
| CHLF(T)2-60 | 42 | 2 | 0.75 | 2900 |
| CHLF(T)4-20 | 15 | 4 | 0.55 | 2900 |
| CHLF(T)4-30 | 22 | 4 | 0.55 | 2900 |
| CHLF(T)4-40 | 30 | 4 | 0.75 | 2900 |
| CHLF(T)4-50 | 38 | 4 | 1.1 | 2900 |
| CHLF(T)4-60 | 45 | 4 | 1.1 | 2900 |
| CHLF(T)8-10 | 8.5 | 8 | 0.75 | 2900 |
| CHLF(T)8-20 | 17 | 8 | 0.75 | 2900 |
| CHLF(T)8-30 | 25.5 | 8 | 1.1 | 2900 |
| CHLF(T)8-40 | 34 | 8 | 1.5 | 2900 |
| CHLF(T)8-50 | 42.5 | 8 | 2.2 | 2900 |
| CHLF(T)12-10 | 9.5 | 12 | 0.75 | 2900 |
| CHLF(T)12-20 | 19.5 | 12 | 1.2 | 2900 |
| CHLF(T)12-30 | 29.5 | 12 | 1.8 | 2900 |
| CHLF(T)12-40 | 39.5 | 12 | 2.4 | 2900 |
| CHLF(T)12-50 | 50 | 12 | 3 | 2900 |
| CHLF(T)16-10 | 10 | 16 | 1.1 | 2900 |
| CHLF(T)16-20 | 21 | 16 | 2.2 | 2900 |
| CHLF(T)16-30 | 32 | 16 | 3 | 2900 |
| CHLF(T)16-40 | 43 | 16 | 4 | 2900 |
| CHLF(T)20-10 | 9.5 | 20 | 1.1 | 2900 |
| CHLF(T)20-20 | 21 | 20 | 2.2 | 2900 |
| CHLF(T)20-30 | 33 | 20 | 4 | 2900 |
| CHLF(T)20-40 | 44.5 | 20 | 4.4 | 2900 |
